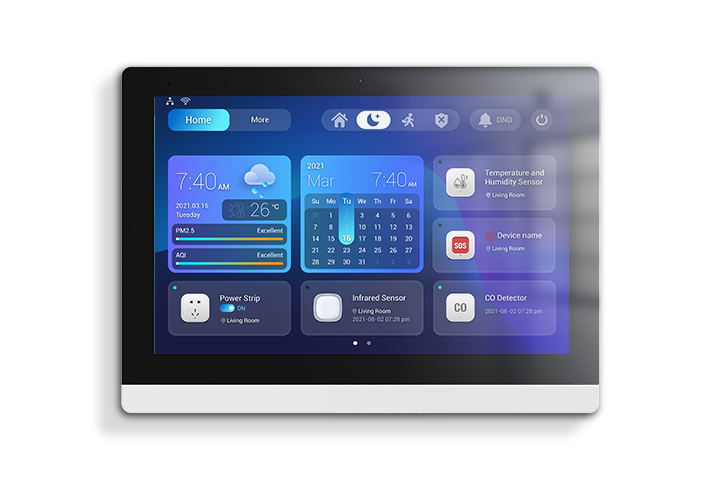

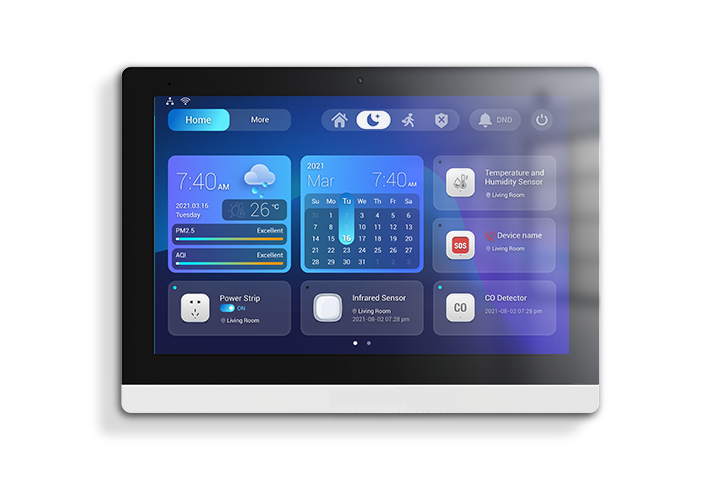

SmartPanel Pro

Physical & Power

  • Front panel
  • RAM / ROM
  • Display
  • Screen
  • Wi-Fi
  • BLE
  • ZigBee
  • Memory slot
  • RS485 port
  • Relays out
  • Bell in
  • IO
  • Camera
  • Microphone
  • Speaker
  • Ethernet ports
  • 802.3af Power-over-Ethernet
  • 12V DC connector (if not using PoE)
  • Tamper resistant
  • Installation
  • Dimension
  • Working Humidity
  • Working Temperature
  • Storage Temperature
  • Plastic
  • 2GB / 8GB
  • 10 Inch IPS LCD
  • 10 Inch capacitive touch screen
  • IEEE802.11 b/g/n, @2.4GHz
  • Support Bluetooth 4.2
  • ZigBee 3.0
  • 1 Micro SD slot
  • Support
  • 2
  • 1
  • 8
  • 1MP camera, CMOS
  • -26dB
  • Dual speakers, 4Ω / 3W
  • 1xRJ45, 10/100Mbps adaptive
  • Yes
  • Yes
  • Support
  • Wall-mounted & Desktop
  • 251x182.5x29.75mm
  • 10~90%
  • -10°C ~ +45°C
  • -20°C ~ +70°C

Touch Screen Display

  • Display Mode
  • LCD Size
  • Aspect Ratio
  • Resolution
  • Contrast ratio
  • Luminance
  • Viewing Angle
  • Touch Screen
  • Normally black, Transmissive
  • 10inch (Diagonal)
  • 16:10
  • 1280x800
  • 900:1
  • 350 cd/m²
  • 80° Left, 80° Right, 80° Upper, 80° Lower
  • Projected capacitive

Audio

  • SIP v1 (RFC2543)
  • SIP v2 (RFC3261)
  • Narrowband audio codec
  • Broadband audio codec
  • DTMF
  • Echo Cancellation
  • Voice Activation Detection
  • Comfort Noise Generator
  • Automatic Gain Control
  • Yes
  • Yes
  • G.711a, G.711μ, G.729
  • G.722
  • In-band, out-of-band DTMF (RFC2833), SIP Info
  • Yes
  • Yes
  • Yes
  • Yes

Video

  • Streaming formats
  • H.263 & H.264

Networking

  • Protocols support
  • IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP, Zigbee3.0

Deployment & Maintenance

  • Auto-Provisioning
  • Web management portal
  • Web-based packet dump
  • Configuration backup / restore
  • Firmware upgrade
  • System logs
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes
  • Yes

Voice Assistant

  • Voice pickup distance
  • Voice recognition accuracy
  • Privacy protection with native voice data
  • Language
  • Up to 5 meters
  • Up to 95%
  • Yes
  • English only

Application Scenario

  • Villas
  • Apartment complexes
  • Home automation systems
  • Modern interiors
  • Yes
  • Yes
  • Yes
  • Yes
