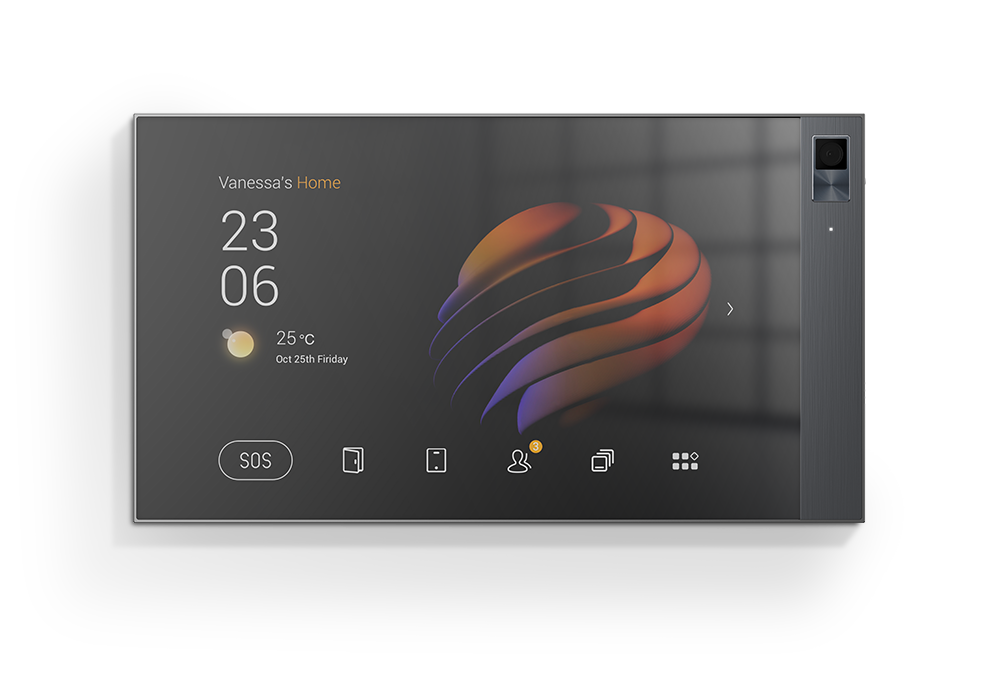

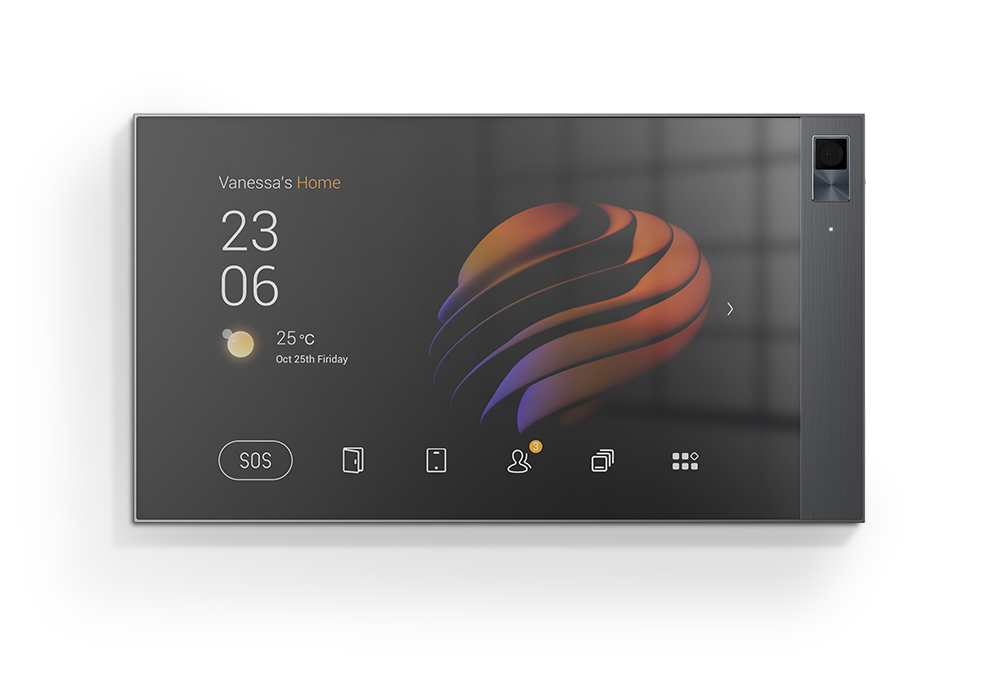

HyPanel Pro

HyPanel Pro

Basic Information

Model Number
Power supply
Operation System
RAM/ROM
Wi-Fi
Bluetooth
Ethernet ports
ZigBee
Microphone
Speaker
Camera
Infrared remote control
Output

PG71-R2-EU
180~260VAC,50HZ
Android 10
2GB/16GB
IEEE802.11 b/g/n, @2.4GHz/5GHz
Bluetooth 4.2
1xRJ45, 10/100Mbps adaptive
ZigBee 3.0
Dual microphone,-38DBV
Single speakers, 6Ω/1.8W
5M pixel camera with privacy shutter
Support
2-gang,1200W total;
800W/gang for resistive;
400W/gang for LED/CFL

Appearance

Material
Screen
Screen Resolution
Screen Brightness

Metal
8” multi-touch screen, AF hydrophobic anti-pollution fingerprint proof coating
1280x800 pixels
260 cd/㎡

Sensors Built In

Proximity sensor
Light Sensor
Temperature Sensor
Humidity Sensor

30~60cm
Low-level lux detection
±1℃,range: -10℃~55℃
±5%,range: 10%~90%RH,without condensation

Working Environment

Environment
Working Humidity
Working Temperature
Storage Temperature

For indoor use only
10%~90%RH，without condensation
-10℃~+55℃
-30℃~+70℃

Installation

Installation
Flush Mounted Box
Wiring Way

Wall flush mounting
EU/UK standard
L- + N- wire required

Application Scenario

Villas
Apartment complexes
Home automation systems
Modern interiors

Yes
Yes
Yes
Yes
