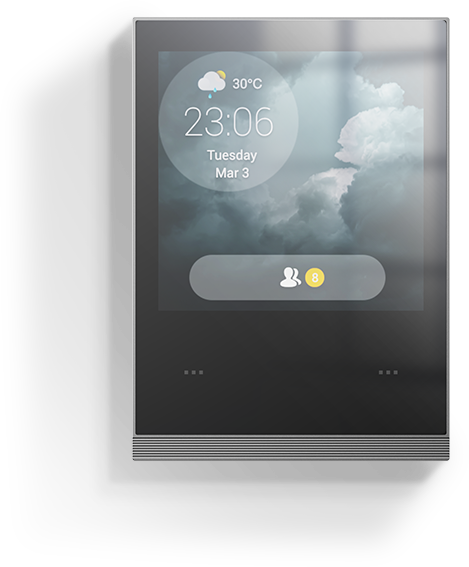

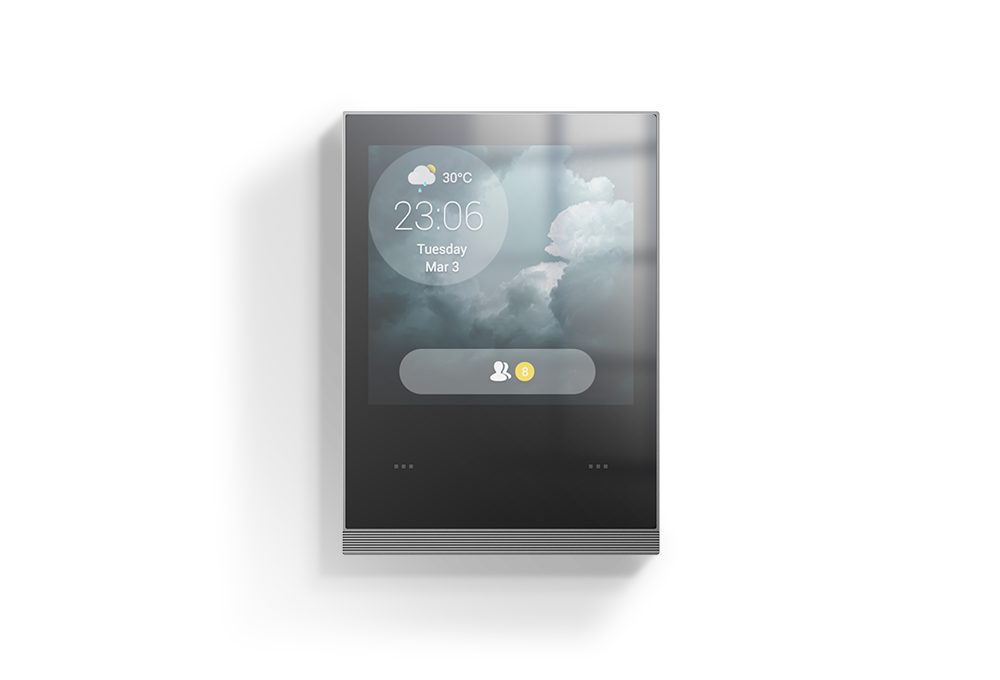

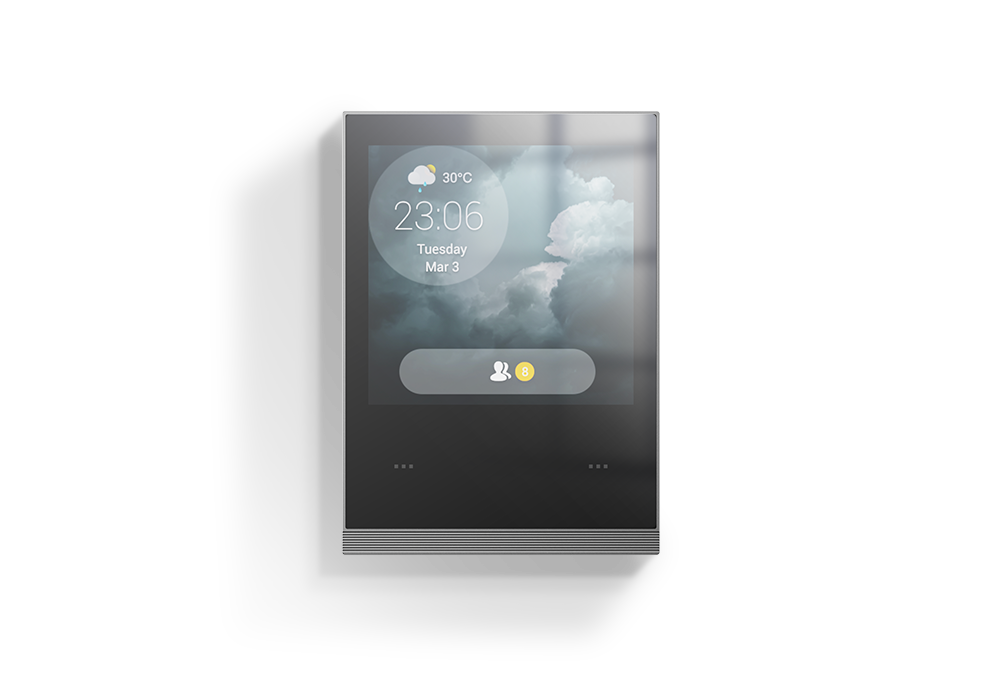

HyPanel Plus

HyPanel Plus

Basic Information

Model Number
Power supply
Operation System
RAM/ROM
Wi-Fi
Bluetooth
Ethernet ports
ZigBee
Microphone
Speaker
Output

PS52-D1-US
90~260VAC,50/60HZ
Android 10
1GB/8GB
IEEE802.11 b/g/n, @2.4GHz/5GHz
Bluetooth 4.2
1xRJ45, 10/100Mbps adaptive
ZigBee 3.0
Dual microphone, -42dBV
Single speakers, 8Ω/1.5W
400W total;
200W/110V/gang for resistive;
400W/220V/gang for resistive;
150W/gang for LED/CFL

Appearance

Material
Button
Screen
Screen Resolution
Screen Brightness

metal
2 touch button
4” multi-touch screen
480x480 pixels
210 cd/㎡

Sensors Built In

Proximity sensor
Light Sensor
Temperature Sensor
Humidity Sensor

30~60cm
Low-level lux detection
±1℃,range: -10℃~55℃
±5%，range: 10%~90%RH, without condensation

Working Environment

Environment
Working Humidity
Working Temperature
Storage Temperature

For indoor use only
10%~90%RH，without condensation
-10℃~+55℃
-30℃~+70℃

Installation

Installation
Flush Mounted Box
Wiring Way

Wall flush mounting
US standard
L- + N- wire required

Application Scenario

Villas
Apartment complexes
Home automation systems
Modern interiors

Yes
Yes
Yes
Yes
